ASE Page

Introduction

The ASE page allows for the operator to operate the aircraft’s Aircraft Survivability Equipment. The central portion of the page displays all detected threats to the airframe, both airborne & grounded. The outer sections allows for the operator to operate the aircraft’s countermeasures & decide how the aircraft should react to threats.

Info

The ase Page will only Show 7 Threats at one time, if there are more than 7 it is ordered by detection order.

ASE

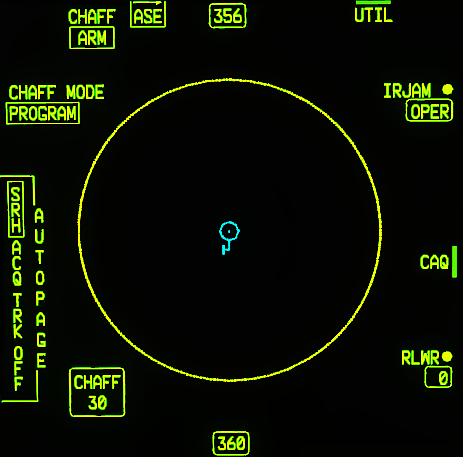

1. Autopage. This sets what situations this page will be automatically shown if not already open. It has 4 Modes.
   • SRH - A new radar has been detected in search mode.
   • ACQ - A radar is Aquiring(Marked) you.
   • TRK - A radar is actively tracking you.
   • OFF - Never autopage.
   Note: In addition to this, the ASE page will Always autopage when launched upon.
2. Countermeasure count.
   • American Mission Equipment - Chaff Count.
   • British Mission Equipment - Chaff & Flare Count.
3. RLWR Counter. - This will show how many Radar and laser threats there are total
4. IRJam Control. - This will toggle the Infra Red Jammer On & Off, when turning on it may display “WARM”, during which it is not functioning
5. MWS Control - When Equiped with the british mission Equipment, this takes place of the IRjam control, and this arms the Flare System
6. Ownship icon. - This represents the Apache.
7. CHAff Control. Toggle Between ARM & SAFE.
8. ASE Bezel. Unboxing this Takes you to the TSD Page.

IR JAMMER

1. OFF. IR jammer are Off.
2. WARM. The IR Jammer Is warming up & non Operational, takes 10 seconds to warm up.
3. OPER. The IR Jammer Is operating and actively Jamming, The Jammer Does not have an operational limit.
   Note: The IR Jammer is a proactive system, working to stop anything locking you evan before launch

RLWR Icons

• * Means the icons Flash

Searching	Aquiring *	Tracking *

specifications

• Azimuth 360°
• Elevation +- 45°
• Detection Range 8KM
